horizontal pillow packing machine

Introduction:
Horizontal packing machine is controlled by touch screen controller with human-machine interface, and is easy to set parameter, works in high speed with high efficiency. It is suitable for all kinds of packaging materials. Customers can choose to whether equip gas filling device on it or not.
horizontal pillow packing machine
  • Dual frequency conversion control, Bag length can be set and cut in one step, saving time and film.
  • Interface features easy and quick setting and operation.
  • Self failure diagnosis, clear failure display.
  • High sensitivity photoelectric eye color tracing, numerical input of cutting/sealing position for extra accuracy.
  • Positioned stop function, without sticking knife or wasting film.
  • Simple driving system, reliable working, convenient maintenance.
  • All control is realized through software, easy for function adjusting and technical upgrade.
  • It adopts international famous electric components, PLC control, friendly interface, with convenient and rapid setting of parameters.
  • The indication of fault is clear and the function is more humanized.
  • The accurate temperature setting is suitable for several of packaging material and improves the quality of seal.

Application:
Horizontal flow packing machine for food have been widely used in several fields throughout the world, such as food, pharmaceuticals, cosmetics, medical supplies, industrial foods, rubber goods, sundry goods, sporting goods, etc.
Food (biscuits, shortbread, chocolate, egg yolk pie, crisp bread, instant noodle, candy, ice cream, etc.)
Medical products (drugs, capsules, eye drops, masks, disposable syringes, gauze, etc.)
Hardware (tin box hinge guide hinges handles bearing coil steel pipe, etc.).
Daily necessities (disposable daily necessities, wet wipes, diapers, toys, etc.)
Plastic (disposable tableware, comb, toothbrush, box, etc.)
Crafts (small handicraft, resin handicraft, etc.)

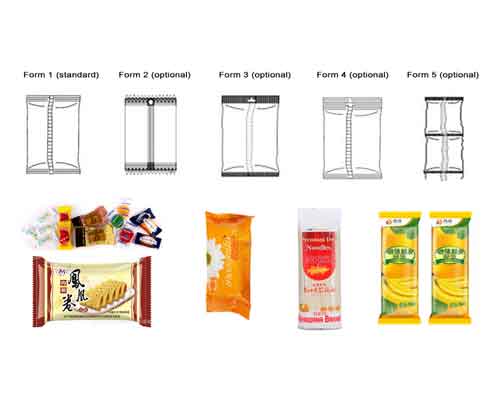

horizontal pillow packing machine Package Styles:
  • Standard Pillow Style Bag
  • Pillow Style Bag With Hole Punch / Euro Slot
  • Gusseted Pillow Style Bag
Type YY-P250 YY-P320 YY-P350 YY-P400 YY-P450 YY-P600
Film width 250MM 320MM  350MM  400MM  450MM  600MM
Bag Length 40-280MM 90-330MM 65-280MM 180-400MM 130-450MM 130-450MM
Bag width 30-110mm 50-150MM 50-160mm 50-185mm 60-200mm 60-280mm
products High max.60mm Max.60mm max.70mm max.80mm max 90mm max95mm
Packing speed 40-330bag/min 40-230bag/min 40-230bag/min 30-180bag/min 30-180bag/min 30-150bag/Min
Power 220V 50/60HZ 2.4KW 220V 50/60HZ 2.6KW 220V 50/60HZ 2.6KW 220v 50/60hz 2.6KW 220v 50/60hz 2.6KW 220v 50/60hz 2.6w
Machine size 3770x670x1450 3770x720x1450 4020x770x1450 4020x800x1450 4020x820x1450mm 4020x90x1450mm
Machine Weight 550kg 600kg 650kg 700kg 800kg 900kg














*The capability and bag size depend upon the type and nature of the products to be wrapped as well as the type and quality of the wrapping materials and the feeding system.
Optional accessories :
1: Date Coder
2: Touchable Screen
3: Automatic Punching Device
4: Alternative sealing patterns and notch
5: Auto labeling device
6: Deoxidizer chute device
7: Gas flushing device
8: Alcohol spraying device
9: Auto feeder
