automatic powder packing machine

This powder packing machine integrates machine, electricity, light, and instrument. It adopts the hi-tech stepper motor to control the feeding screw and a servo motor to operate the scraping paddle in the barrel. All contact parts with packing materials are made of stainless steel 304 or 316 conforming to requirements of customers.

This powder packing machine has two dedicated PLC's for accurate sealing and cutting according to the sachet design. Besides, this machine is of many optional advanced characteristics such as microprocessor controlled sachet length, electronic speed control, automatic output sachet counting and batch creating, intelligent status warning devices for various parameters with shut-down and error reporting, etc.

Sachet Packing Machine Application:

It is widely used for packing powdery material with 120-400 mesh. Such as food additives, milk powder, albumen powder, herbal powder, tea powder, mask powder, etc.
This machine has an electronic control unit for accurate sealing and cutting according to the sachet design. Sealing pattern available is 3-side seal, 4-side seal and centre seal for customers.
This PLC controlled fully automatic powder packing machine is suitable for packing free-flowing powders for food service, pharmaceutical, and other industries.

Specification：

Model	YY-40	YY-180
Bag length	50-110mm	80-150mm
Bag width	30-80mm	70-100mm
Packing speed	20-60bag/min	20-40bag/min
Packing range	20-100g	50-200g
Power	1.8KW/220V/50Hz	2KW/220V/50Hz
Total weight	300kg	380kg
Dimension	9007001900	10008002000

Advantages:

Easy operation. It requires no training for the machine’s start-up, operation or maintenance. The detailed illustrated manual supplied with the machine is enough to DO-IT-YOURSELF!
High speed: this machine adopts spiral baiting and optical controlled technology
High precision: this machine adopts the step motor and electronic weighing technology
Reputed components are used in the machine guarantee the high quality of the machine
Spare parts are available at reasonable price
A wide range of application: it can be applied in packing fluidity Powdery products
Configurable feeding device is available, more convenient to users
Automatically track changes caused by the error correction due to the material proportion and material level can be, save labor costs
Photoelectric switch control, it only needs artificial bagging, has clean bag mouth, and is easy to seal
Parts contacting materials is made of stainless steel, convenient to clean, and prevent cross contamination
Automatically print the packaging batch number or production date finished products

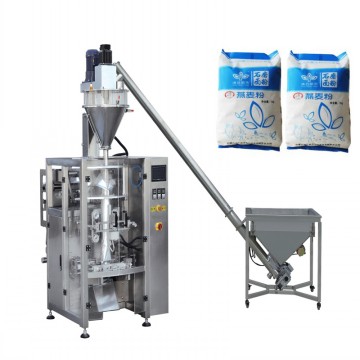

Full automatic vertical powder packing line advantages:

Simple construction, reliable operation, easy maintenance.
The machine use screw feeding and independent stir system, controlled by microcomputer and encoders from servo code.
Code and control combined into one machine, low noise,reliable measure,high precision and can display the measuring number.

Specification:

Item	YY-398	YY-520	YY-200
Composition of machine	YY-398 basic machine, auger filler, spiral conveyor	YY-520 basic machine, auger filler, spiral conveyor	YY-220 basic machine, auger filler, spiral conveyor
Packing scope	Suitable for powdery material such as milk powder, albumen powder, solid drink, white sugar, dextrose, coffee powder, rice powder, spice powder, fodder, pharmaceuticals, agriculture pesticide, granular additive, dyestuff etc
Pouch type	Pillow bag, Die-cut bag, pin bag		Standup Pouch(with zipper or without zipper),
Packing speed	≤50bag/min	≤40bag/min	≤35bag/min
Pouch size	W:50-200mm L:100-300mm	W:100-250mm L:100-350mm	W:100-200mm L:100-300mm
Packing precision	≤±1	≤±1	≤±1
Packing weight	10-500g	10-1000g	10-1000g
Compress air	0.6m3/min
Power	3KW/3 phase,220V,50/60Hz (according to your country)		5KW/3 phase,220V,50/60Hz (according to your country)
Total weight	500kg	600kg	700kg
