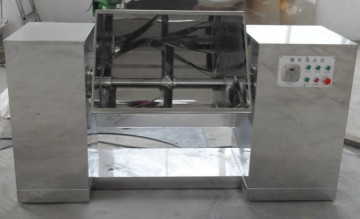

trough type mixing machine
Usage and structure:
Trough type mixing machine is used for mixing powdery or pasty material, it can make different material mix evenly. The mixing tank can overturn to discharge material automatically, the Tilt Range of mix tank is 3600. The mixing time can be set at will.
Specification:
|
Model |
Working volume (L) |
Stirring speed(rpm) |
Stirring motor (KW) |
Discharge motor (KW) |
Overall size (mm) |
Weight (kg) |
|
YH-50 |
50 |
24 |
1.5 |
0.5 |
1200×500×950 |
320 |
|
YH-100 |
100 |
24 |
2.2 |
0.55 |
1400×580×1000 |
350 |
|
YH-150 |
150 |
24 |
3 |
0.75 |
2000×630×1150 |
410 |
|
YH-200 |
200 |
24 |
4 |
1.1 |
2300×750×1350 |
450 |
|
YH-300 |
300 |
24 |
5.5 |
1.5 |
2700×850×1500 |
520 |
|
YH-500 |
500 |
24 |
7.5 |
2.2 |
2940×900×1700 |
600 |
