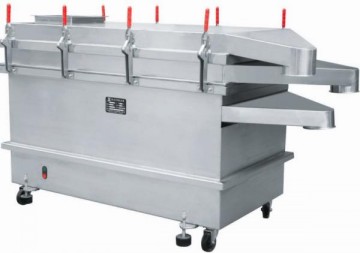

square vibrating screen
Application：
Square vibrating screen is suitable for industries such as pharmacy, chemical, foodstuff, construction and fodder etc. The sifter can be produced to 1-4 layers. It is ideal equipment for sifting granule and granule powders.
Working principle:
This machine is composed of sieve box, vibration motor and absorber. The vibration motor can guarantee the compact structure of the material and the absorber can make the machine work smoothly. The machine base is adjustable; According to material character it can adjust the sifter angle of inclination.
Specification:
|
Model |
Capacity (kg/h) |
Sieving mesh (mesh) |
Power (KW) |
Vibrating frequency (time/min) |
Screen incline angle |
Overall size (mm) |
Weight (KG) |
|
YS-5 |
80-850 |
3-120 |
0.4 |
1400 |
0°-45° adjustable |
1450×600×1050 |
280 |
|
YS-8 |
100-1100 |
3-120 |
0.5 |
1400 |
0°-45° adjustable |
1880×850×1350 |
420 |
|
YS-12 |
120-1200 |
3-120 |
0.75 |
1400 |
0°-45° adjustable |
2200×1000×1450 |
520 |
|
YS-18 |
160-1600 |
3-120 |
1.1 |
1400 |
0°-45° adjustable |
2400×1200×1500 |
680 |
|
YS-20 |
200-2000 |
3-120 |
1.5 |
1400 |
0°-45° adjustable |
2800×1200×1600 |
800 |
